应用范围 Scope of application
▲适用于医药、化工、食品、电子、中药等行业的热敏性物料干燥。
▲It is suitable for drying heat sensitive raw material of pharmaceutical industry,chemical industry,foodstuff industry,electronic industry,Chinese traditional medicine industry,ete.
特 点Features
▲能在较低温度下得到较高的干燥速率，热量利用充分
▲适合低温干燥或热敏性物料的干燥
▲能干燥含有溶剂及需回收溶剂的物料
▲在干燥前可进行消毒处理。干燥过程中无任何不纯物混入
▲本干燥器属于静态真空干燥器，故干燥物料的形体不会损坏
▲It can get higher drying speed at lower temperature and the heat energy can be used fully.
▲It can dry at low temperature or can dry heat sensitive raw materials.
▲It cam dry raw materials that contain solvent and the solvent needs to recover.
▲Before drying,it can carry out disinfectant treatment.during the period of drying,any impurity can not enter in it
▲The dryer belongs to static vacuum one,the shape and volume of raw materials can not be damaged.
工作原理及特点头Working principie and features
▲纯水在沸腾状态时具有最大的汽化速度。常压下，约100℃时纯水开始沸腾。而在真空条件下，由于系统中水蒸汽分压，远低于物 科表面的水蒸汽分压，水的沸点低于100℃。例如：表面降至-0.07MPa时，水在70℃即开始沸腾。一般规律，真空度越高水的沸点 越低。在真空干燥器内汽化后的水能随真空产生系统迅速排除，所以尽管在较低的操作温度下，本干燥器仍有较大的干燥能力。
▲设备运行时，物料处于静止状态，有利于保持物料的初始形态，间歇操作，能随时调整工艺条件，本设备均为人工装卸科。

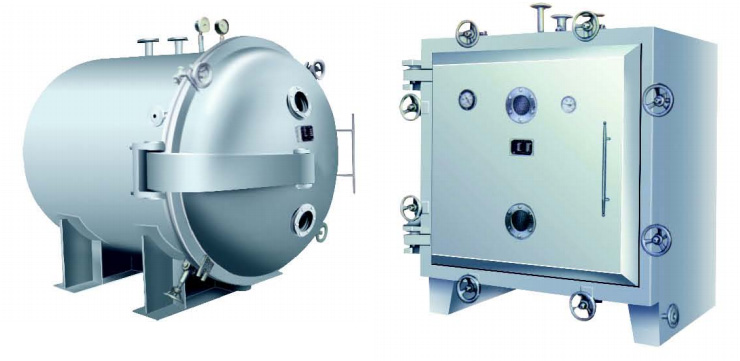

▲FZG方型系列干燥器，顶部布置为拱型结构.能有效克服凝结水返滴问题，进一步提高了干燥效率。并独家设计采用了四点 合一抽真空结构，保证了各部位物料干燥的均匀性。
▲本设备既可用于低温干燥，又能用于溶剂回收，所用热源可为蒸汽，也可为热水，导热油
▲特别适用于干燥过程中怕氧化的物料。
▲Pure water has the highest evaporation speed under boiling condition.At normal pressure,pure water starts to boil at the temperature of 100℃,under vacuum condition,as vapor pressure in the system is lower than that of material surface,boiling point of water is under 100℃,e.g.when surface is at 0. 07MPa,water will boil at the temperatre of 70℃,the higher of vacuum pressure,the lower of boiling point In the vacuum dryer,evaporated water can be removed quickly by the vacuum system,therefore,this dryer has larger drying capability although it's under lower operation temperature.
▲Material is under static conditions during operaticn of the equipment,which is benefit for keeping initial status of material,intermittent operation can adjust process conditions at any time.
▲On the top of FZG dryer,heating system is arranged to tackle the problem of return of condensed water,in addition,air suction is arranged at the side to improve drying efficiency.
▲This equipment can be used for low temperature dying and solvent recovery,heat sources can be steam,hot water or heat conducting oil.
▲It is specially suitable for materials that is easily oxygenated during drying.
订货须知 Notes to order
▲本厂价格表中的真空干燥器价格仅指真空干燥器本身，不连附件。
▲订货时请根据干燥物料的物性，初含水率、温度、真空度、干燥量、干燥时间等因素选择合适的真空干燥器，同一种型号 的真空干燥器中分别有蒸汽型、热水型、导热油型三种形式的加热方式。例如：为了增加干燥量，可适当增加烘架层数，请 及时向我厂提出。
▲在使用说明书上涉及的真空干燥系统中的附件，我厂均可为用户提供和安装，请在订货时说明
▲本厂可对用户提出的真空干燥系统中的特殊要求提供设计、制造与安装
▲本厂设备对用户实行质量三保，长期提供一切配件，敬请用户放心
▲The price in the table is only the price of vacuum dryer itself not including accessories.
▲When order,please choose suitable vacuum dryer in accordance with the characteristics of raw materials to be dried such as,physical properties,primary moisture,temperature,vacuum degree,amount to be dried,drying time,ete.The vacuum dryer with same models three types i.e.,team type,hot water type,heat conduction oil type.For example,in order to increase dry quantity,the quantity of layer of baking frame can be increased.Please put forward it to our factory.
▲The accessories used for vacuum drying system mentioned in Operation Instruments can be provided and instlled by our factory.Please explain it when order.
▲The factory can also provide design,manufacture and installation for special requirements of vacuum drier from customers.
▲The equipment of our factory carries out"guarantee of repair,replacement and refund of substandard product" and supplies all fittings for a long time. Please put your mind at rest.
技术参数 Technical Parameters
规格mods | YZG-600 | YZG-800 | YZG-1000 | YZG-1400 | FZG-10 | FZG-15 | FZG-20 |
干燥箱内尺寸inter size of drying chamber (mm) | Φ600 x 976 | Φ800 x 1247 | Φ1000×1527 | Φ1400×2054 | 1500x 1060x 1220 | 1500 x1400x 1220 | 1500x1800×1220 |
干燥箱外尺寸outer size of drying chamber (mm) | 1135×810×1020 | 1700x 1045x 1335 | 1693 ×1190 ×1500 | 2386x 1657×1920 | 1924×1720x 1513 | 1513x 1924×2060 | 1924×2500×1513 |
烘架层数Layers of baking support | 4 | 4 | 6 | 8 | 5 | 8 | 12 |
层间距离interval (mm) | 81 | 82 | 102 | 102 | 122 | 122 | 122 |
盘尺寸size of baking tray(mm) | 310×600 ×45 | 520×410×45 | 520×410×45 | 460×640×45 | 460×640 ×45 | 460 640×45 | 460 ×640×45 |
烘盘数quantity of baking tray | 4 | 8 | 12 | 32 | 20 | 32 | 48 |
烘架管内使用压力 | ≤0.784 | ＜0.784 | ＜0.784 | 0.784 | ＜0.784 | ＜0.784 | ＜0.784 |
烘架使用温度operation temperature of baking support(℃) | 35~150 | 35~150 | 35~150 | 35~150 | 35~150 | 35~150 | 35~150 |
箱内空载真空度degree of vacuum inside the chamber when operation in idle(MPa) | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 |
在0.1Mpm.加热温度110℃时，水的汽化率 undar the condition of-0.1Mpa and110℃,evaporation rate of water(kg/mp².hr) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
用冷凝器时.真空泵型号、功率(kw) | 2X-15A 2kw | 2X-30A 3kw | 2X-15A 3kw | 2X-70A 5.5kw | 2X-70A 5.5kw | 2X-70A 5.5kw | 2X-90A 7.5kw |
不用冷凝器时，真空泵型号、功率(kw) | SZ-0.5 1.5kw | SZ-1 2.2kw | SZ-1 2.2kw | SZ-2 5.5kw | SZ-2 4kw | SZ-2 5.5kw | SZ-2 5.5kw |
干燥箱重量weight of drying chamber(kg) | 250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 |
上述参数会随实际情况有所变化，仅供参考，不作为最终依据。 | |||||||
