CT-C 系列热风循环烘箱

概 述 Descriptions

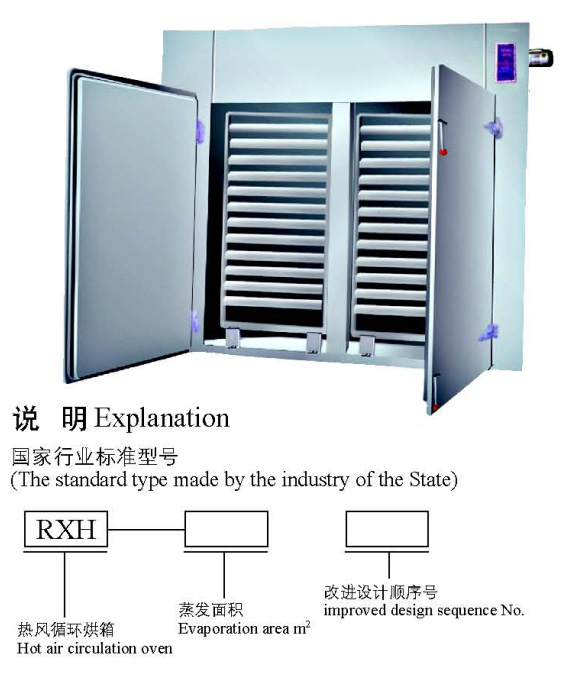

 ▲CT-C型系列热风循环烘箱配用低噪音耐高温 轴流风机和自动控温系统，整个循环系统全封 闭，使烘箱的热效率从传统的烘房3-7%提高到目 前的35-45%,最高热效率可达70%。CT-C型热风循 环烘箱的设计成功，使我国的热风循环烘箱达到 了国内外先进水平。为我国节约了大量能源，提 高了企业的经济效益，1990年由国家医药管理局 发布了行业标准，统一型号为RXH。
 ▲CT-C series hot air circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system.The entire cir-  culation  system  is  enclosed  to  make  that  the  heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-45% of the present  one.The highest heat efficiency can be up to 70%.The successful design of CT-C hot air circulation oven  makes that the hot air circulation drying oven in our country reach the advanced level in the world.It saves energy and increases the economic benefit,In 1990,the medical management bureau of the State issued the industry stardard and the uniform type is RXH.

一、加热源有蒸汽、电、远红外、汽电两用供用户选择。
 二、使用温度：蒸汽加热50-130℃,最高140℃,
 三、用电、远红外温度50-300℃。可配套自控系统或电脑控制系统,供用户选择。
 四、常用蒸汽压力0.2-0.8Mpa(2～8kg/cm2)。
 五、配用电加热按1型计算15kw、实用5-8kw/h
 六、特殊要求在定货时表明。
 七、非标烘箱价格面议。
 八、使用温度大于140℃或小于60℃，要在订货时注明。
 九、本厂出厂烘车，烘盘尺寸统一，可以互换。
 十、烘盘尺寸：460×640×45mm。
 1.Options of  heat source:steam,electricity,or far infrared,or  both stear electricity.
 2.Drying  temperature:steam  heating  50-130℃,Max.140℃.
 3.Electricity and far infrared:50-300℃.Automatic control system and compute control system on request.
 4.Commonly used steam pressure 02-0.8Mpa(2-8kg/cm²)
 5.For  CT-C-I,electric heated,rated power consumption:15Kw,real consumptio:5-8Kw.
 6.The special requirements should be indicated at the time of order. 7.Please consult as for any special requirements.
 8.For operation temperature of over 140℃ or less than 60℃,please indicat, when order.
 9.The ovens and baking trays made by our factory are uniform in dimesion, and can be exchanged each other.
 10.Baking plate dimensions:460×640×45mm.

应 用 Applications
 ▲适用于制药、化工、食品，农副产品、水产品、轻工、重工等行业物料及产品的加热固化、干燥脱水。如原料药、生药、中药饮片、浸膏、粉剂、颗粒、冲剂、水丸，包装瓶、颜料染料、脱水蔬菜、瓜果干、香肠、塑料树脂、电器元件、烘漆等。
 ▲This drying oven is suitable for material and product hot solidification and dry de-wateing in the    pharmaceuical,chemical,food,farming,side-product,    aquatic product,light industries,heavy industries and others industries,Such as:raw material medicine, crude drug.prepared herbal medicine of Chinese traditional medicine,plaster,powder,particle,drinking
 agent,pill,packing bottle,pigment,dyestuff,de-wa- tering vegetable,dried fruit piece,sausage,plastics, resin,electric component,baking varnish and etc.

特  点 Features
 ▲大部分热风在箱内循环，热效率高，节约能源。利用强制通风作用，箱内设有可调式分风板，物料干燥均匀。热源可采用 蒸汽、热水、电，远红外，选择广泛。整机噪音小，运转平衡，温度自控，安装维修方便。适用范围广，可干燥各种物料， 是通用干燥设备。
 ▲Most hot air is circulated in the oven.The heat efficiency is high and the energy is saved.By using the forced ventilating function,there are adjustable air distribution plates inside the oven,the materials can be dried uniformly.The heating source might be steam,hot water,electricity and far infrared with a wide selection.The whole machine is Iow in the noise.The operation is in balance.The temperature is controlled automatically.The installation and maintenance are easy.The application is wide.The machine can be used for drying various materials and is a versatile drying equipment.

技术参数 Technical Parameters

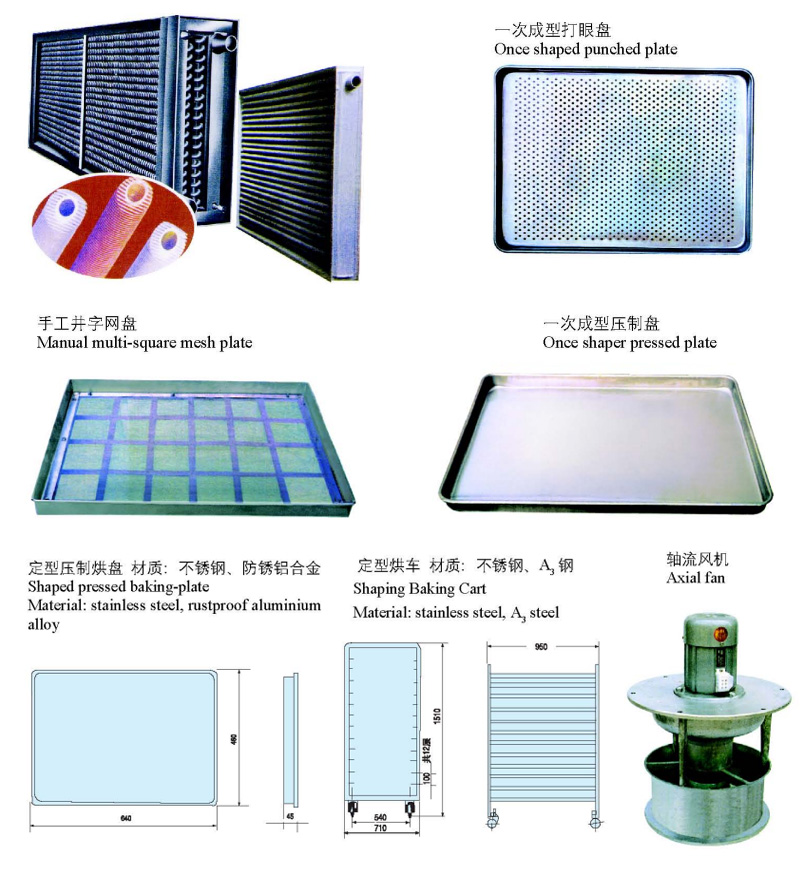

热风循环烘箱配件

◆散热器可配套各种干燥设备使用，规格多种多样，使用材质有：铝合金、不锈钢、A3钢表面涂锌、钢铝复合、铜制、钢管 铝绕片。另外，散热器可单独用于室内与库房的加热除湿，我厂可为用户设计制作。

The radiators can be used for various drying equipment.There are many specifications and kinds.The materials to be used are aluminium alloy stainless steel,A3 steel surface zinc covering,steel and aluminium compound,copper,steel pipe and alumirniun winding sheet In addition,the radiators can be used for the heating and dehumidification indoors in the warehouses.Our factory can carry out the design and manufacturing for our users.
