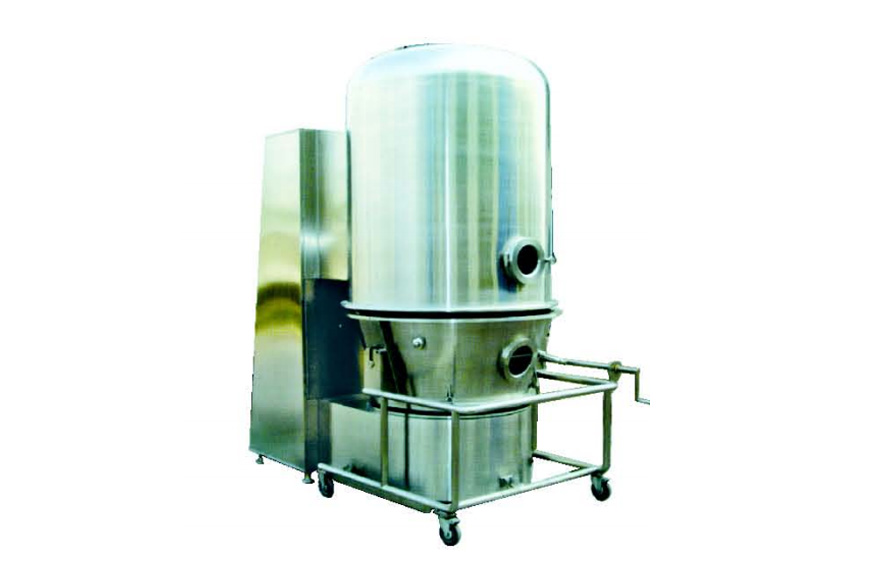

GFG 系列高效沸腾干燥机

应 用 Applications

▲机制螺杆挤压颗粒、摇摆颗粒、湿法高速混合制粒颗粒。

▲医药、食品、饲料、化工等领域湿颗粒和粉状物料干燥。

▲大颗粒，小块状粘性块粒状物料。

▲魔芋、聚丙烯酰胺等干燥时体积变化的物料。

▲Screw extruded grarules,sway produced YK series Granules and grarmules produced by GHL series Gramulator.

▲Suitable for drying humidity block or powder raw material in Pharmaceutical,foodstuff,feed,chemical industries and so on fields.

▲Large gramules,small blocks and adhesive material

▲The materials that volumes migh vary during drying process.

 特  点 Features

▲流化床为圆形结构避免死角。

▲料斗设置搅拌，避免潮湿物料团聚及干燥时形成沟流。

▲采用翻倾卸料，方便迅速彻底。亦可按要求设计自动进出料系统。

▲密闭压操作，气流经过过滤。操作简便，清洗方便，是符合“GMP”要求的理想设备

▲干燥速度快，湿度均匀，每批次干燥时间一般均在20-30分钟。 ▲The structure of fluidization bed is of round so as to avoid dead corner.

▲Inside the hoper there is a stiming device in order to avoid agglomeration of raw material and forming canal of flow.

▲The gramule is discharged throngh the method of turning over.In this way it is very convenient.the discharging system can be designed as request too.

▲It is operated at the conditions of negative pressure and sealed.the air is filtered. therefore it is simple in operation and convenient for cleaning It is an idea equipment.tha tis in conformity with the requirements of GMP.

▲The drying speed is fast and the temperature is uniform.The drying time is 20~30 minutes normally.

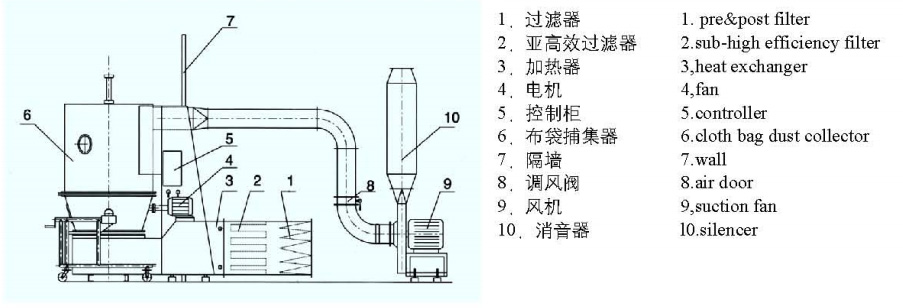

原 理 Principle

▲空气经加热净化后，由引风机从下部导入，穿过料斗的孔网板。在工作 室内，经搅拌和负压作用形成流态化，水份快速燕发后随着排气带走，物 料快速干燥

▲Purified and heated air is indroduced from the bottom through suction fan and passcd through the screen plate of row material.In the work chamber,the state of fluidization is formed through  stirring and negative  pressure.The moishure is evaporated and removed rapidly and the raw matenal is dried quickly.

技术参数 Technical Parameters
