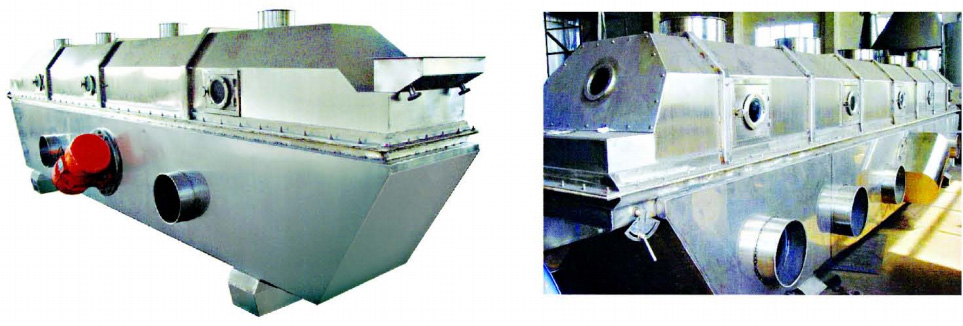

ZLG 系列振动流化床干燥机

应用范围 Scope of application
 ◆医药化工：各种压片颗粒、硼酸、硼砂、苯二酚，苹果酸，马来酸等。
 ◆食品建材：酒糟、味精、砂糖、食盐、矿渣、豆瓣种籽等。
 ◆还可用于物料的冷却、增湿等。
 ◆ Pharmaceutical and chemical industries:all kinds of press tablet and granule,boric acid,borax,dihydroxybenzene,malic acid,maleic acid andso on;
 ◆ Foodstuff and construction material industries:lees,monosodium glutamate,edible sugar,edible salt,mine residue,bean,seeds and so on;
 ◆ It also can be used for raw matcrials to add up damp or cooling and so on.

特 点 Features
 ◆物料受热均匀、热交换充分、干燥强度高，比普通干燥机节能30%左右。
 ◆振动源是采用振动电机驱动，运转平稳，维修方便，噪音低，寿命长。
 ◆流态化稳定、无死角和吹穿现象。◆可调性好、适应面宽
 ◆对物料表面损伤小，可用于易碎物料的干燥，物料颗粒不规则时亦不影响工作效果。
 ◆采用全封闭式的结构，有效防止了物料与空气间的交叉污染，作业环境清洁。
 ◆Raw mateia lis heated everly and heat exchange is fuly ued and dry capacity is high.Compared with ordinary drier,the energy can be saved about 30%
 ◆The vibration is created by motor.It is stable in operation and convenient in maintenance,Iow noise and long life;
 ◆The fluidized state is stable and no dead angle and phenomenon of broken out;
 ◆It is good in regulation and wide in suitability.
 ◆ It is small for damaging the surface of raw material.The equipment can be used for drying raw materials that are easy broken.The drying effet can not be affected even if raw materials gave anomalous shape;
◆It is effective to prevent from cross pollution between raw material and air becase the equipment adapts filly closed stmicture.The environment of operation is clean.

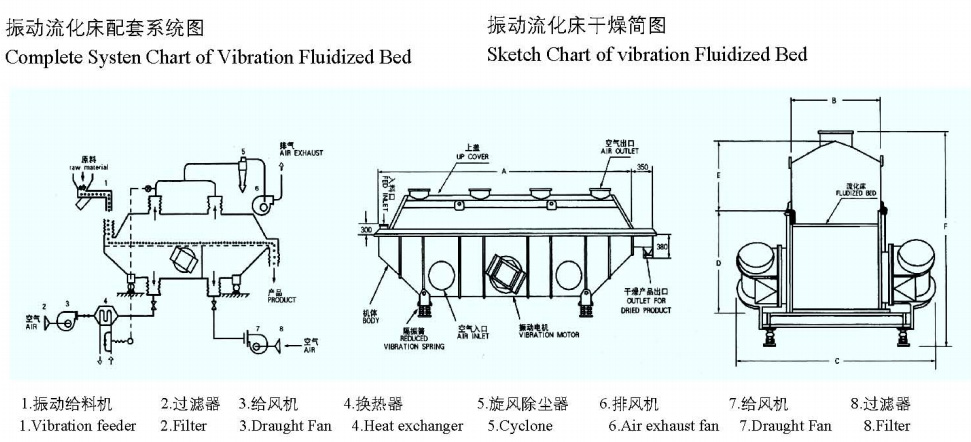

工作原理 Principie Of Work
 ◆物料自进料口进入机内，在振动力作用下，物料沿水平流化床抛掷向前连续运动，热风向上穿过流化床同湿物料换热，湿 空气经旋风分离器除尘后由排风口排出，干燥物料由排料口排出。
 ◆Raw material is fed into the machine fom the inlet nd moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp air is exhausted out through cyclone  separator and duster and the dry raw material is discharged through discharge outlet.

技术参数 Technical Parameters
