概 述 Descriptions
▲本机适用于制药、化工、食品等行业两种以上干粉状、颗粒状物料的混和
▲该机混合筒结构独特。混和效率高，无死角，采用不锈钢材料制作。内 外壁抛光处理，外形美观，混和均匀，适用面宽，并能根据用户的要求配 套强制搅拌器，以适合较细的粉粒、块状、含有一定水份的物料混合之用
▲This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry chemical industry foodstuff industy and so on.
▲The structure of this machineis unique.Its mixing efficiency is high and no dead comer.It is made of stainless steel. Its inner and outer wall is processed through polishing.Its apperance is beauty.Its mixing is unifom.Its scope of application is wide.The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder,cake and certain moisture as requst.

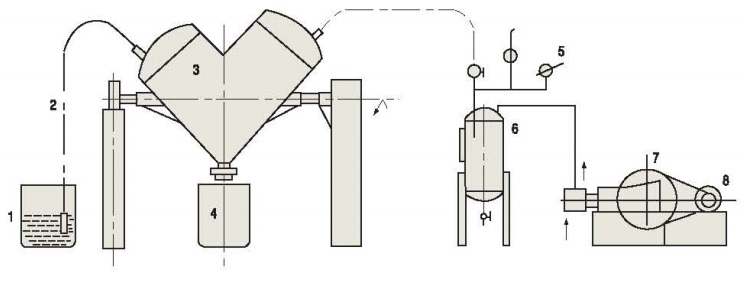

工艺流程Flow chart
 | 1.物料简 Cylinder of raw material 2.吸料管 Cylinder of sucked raw material 3.混合机 Mixer 4.出料筒 Cylinder of discharged raw material 5.真空表 Vacuum meter 6.气体净化罐 Tank of air purification 7.真空泵 Vacuum pump 8.电动机 Motor |
型号规格Model&specs | VH-0.18 | VH-0.3 | VH-0.5 | YH-1.0 | VH-1.5 | VH-2.0 | VH-25 | VH-3.0 | YH-4.0 | VH-5.0 | VH-60 |
生产能力Productive capacity (kg/time) | 72 | 120 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 |
配用真空泵型号Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
进料时间Time of raw material fed in(min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
混合时间Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
全容积Total volume(m³) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
搅拌转速Stiring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
电机功率Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
回转高度Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
重量Weight(kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
备注：装载系数：均为0.4-0.6,该表中的生产能力均按装载系数0.5,物料密度0.8计算。
Notes:all loading cofficient is 0.4-0.6. the productive capacity listed in he table is calculated in accordance with 0.5 of loading coefficient and 0.8 of raw material density.
