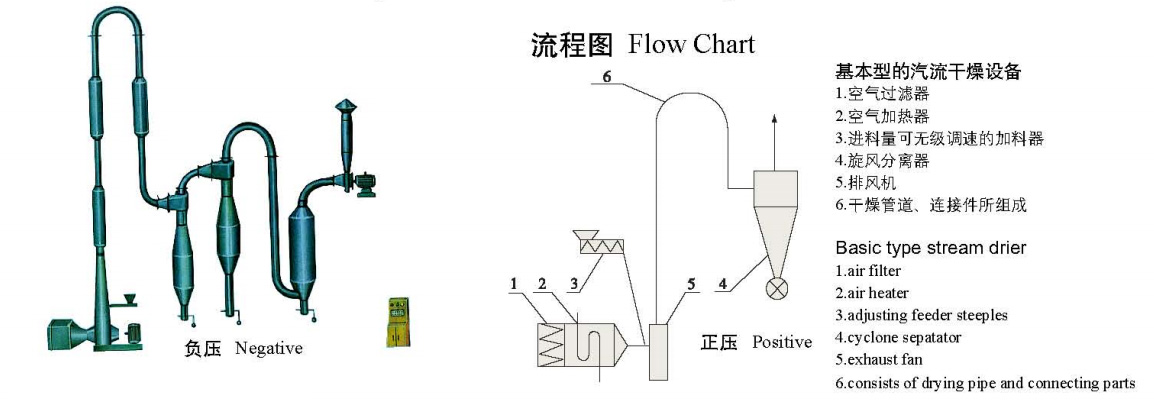

QG 系列气流干燥机

应 用Applications
 ▲这种类型的设备，适应的物料比较多，除基本型提及的物料外，还有：安眠酮、A.BC中 间 体 、A.B.S 树 脂 、ASC、   白 炭
 黑、苯茶吡唑酮，茶柏，草酸催化剂、促进剂m,dm、   触媒、沉淀炭粉，淀粉，对乙酰氮基苯磺酰氨、对氨基水杨酸，哆 耳玛托、对苯二酸、二乙铵、二氧化钛、活性碳、氟硅酸钠、氟石矿、副产硫铵、硅胶粉末、合成树脂、磺酸钙、聚丙烯 树脂、金霉素、焦硅酸钠、糠氯酸咖啡渣，口服葡萄糖、硫酸钠、硫化矿、磷矿粉、兰BB 、PV.C 、 熔融磷肥、四环素、三 氧化铁，碳酸钙，钛铁矿、铜矿、土豆粉、尾煤，硬脂酸盐，玉米蛋白，药品，药剂，氧化铁，酒渣等。
 ▲ The equiment can meet different need of raw materials. Besides the mantioned raw materials in basic model,there are hymenal,A.B.C intermediate, ABS resin white carbon black tea,catalyst of oxalic acid,promote agent m.d.m,catalyst,deposited carbon powder,N-acetyl-sulfanily chloride,p-aminosalicylic acid,p-phthalic acid,diethyl aniline,titanium dioxide,active carbon,sodium fluosilicate,ammonum sulphate,powder of silicon glue  synthesis resin,calcium sulpbhate,PP resin,aureomycin,sodium polysilicate,oral glucose,sodium sulphate,mine of sulphate,mine of phosphorus.BB  blue,melting  phosphorus fertilizer,tetracycline,feric  oxede,calsium  carbonate,titanium/ferrie  mine,copper  mine,powder  of  white  potato,tail  coal  stearate,zein,medicine,medical agent ,ferric   oxide, lees    residur   and so on.

工作原理Principle
 ▲具有分散作用的风机，特别适合热敏物料的气流干燥作业，高速飞旋的风机叶轮。能把湿的，甚至结块的物料解碎，直至分散，在分 散的过程中同时搅拌、混和，然后物料和热气流平行地流动。这种类型的设备，适应干燥滤饼结块的，但还属于表面水份的物 料，含湿量<40%、如果处理量大或者成品要求干至15%以下时，可采用二级气流干燥。当物料含湿量超过40%,但<60%时  进料较困难，应采用混料器。通过混进干料的方法以降低进料水份，此时，干燥设备的总产量就有较大幅度的下降。这在经济 上是不合算的。因此.用户应先用机械的方法(离心脱水或压滤)尽可能的降低进料水份，以确保干燥作业的顺利进行。
 ▲lt is equipped with fan that has the function of dispersing.So it is suitable for heat sensive raw materials specially.The impeller of fan with high speed can srush the wetted and blocked raw material till sidpersing.During the period of dispersing,it is stirred and mixed.Then the raw material and air are   flowing parallel.WIth the equipment raw materials that are blocked filter cake but belong to the raw material having moisture on its surface.Its content of moisture should be les than 40% . If the abount to be treated is large or the moisture requirement of finished products should be less than 60%,two grades drying can be used.If the moisture of raw materilsis between 40% and 60%,the feeder is difficult. It is necessary to adapt mixer.Through the method of mixing dry raw material into it to decrease the moisture of raw material, At this time,the total output of drier will be decreascl greatly. It is not suitable in economy.Therefore customer should remove the moisture using machinery method (centrifugal or press) so as to decrease is moisture as possible in order to guarantee the drying operation can be carried out freely.

技术参数Technical Parameters

注：1、有*号者为二级干燥     2、装机功率，占地面积以蒸汽加热方式计算。

Notes:1 、marked with“*”hast wogrades  fordrying.        2 、Its power and area to be occupied are calculated basedon steam heating.
