JG 系列气流干燥机

应用Applications
 ◆本机特别适合含湿量比较大的。呈膏糊状的 湿物科。以及用其他气流干燥方法无法干燥的 物科，如：醋酸乙烯及氯乙烯的共聚物，醋酸 纤维絮，催化剂、C.M             C,CT-1树脂，煅石 膏、电解二氧化锰、蒽醌磺酸铵盐、氟石、硅 藻土，硅胶催化剂，骨粉，过氯酸钾磺铵类药 物，合成树脂，活性面筋、恬性白土、化学滤 饼、金红石型钛白粉、癸二酸、硫酸铜、硫酸 铝、硫酸钠、磷酸钙、磷酸酯化淀粉、染料、柠 檬酸钙，煤泥、粘土，粘土水泥，氢氧化铝、氢 氧化钡，乳酸钙.食品，三聚氰酸，石膏浆、石 灰，生物制品，碳黑、碳酸钙浆、污泥渣、有 机化学品硬脂酸铝、氧化铁、有机燃料、玉米 蛋白饲料，阴湿泥浆、云母粉，药剂，颜料、重 铬酸钾纸浆，酒糟渣等。
 ◆This dryer is suitable for the raw materials that contains high moisthre and appear paste state and other raw materials that can not be dried with other drying methods.For example,copolymer of vinyl  acetate and chlorothymol  cellulose acetate,catalyst,C.M.C,CT-1 resin,bumt plaster,  electrolytic manganese dioxide,anthraquinone am mo-nium sulphonate,fluor,diatomaceous,silica gel catalyst,  born powder,potassium perchlorate sulfonamide,synthe-sis resin,active gluten,active argil,chemical filter cake, titanium  dioxide,decanoie  acid,copper sulphate, Aluminumsulphate,sodium sulphate,calcium phosphate, starch,dyestuff,calcium citrate,coal earth,cement,ahumi-num  hydroxide,barium  hydroxide,slurry  of  calcium  carbonate,residue of  sludge,organic compounds,ferrie  oxide,organic  fuel,maize  albumen  feed,mica  powder,  medicine,dyestuff,paper pulp of potassium prodromata,  lees residue and so on.

原理Principle

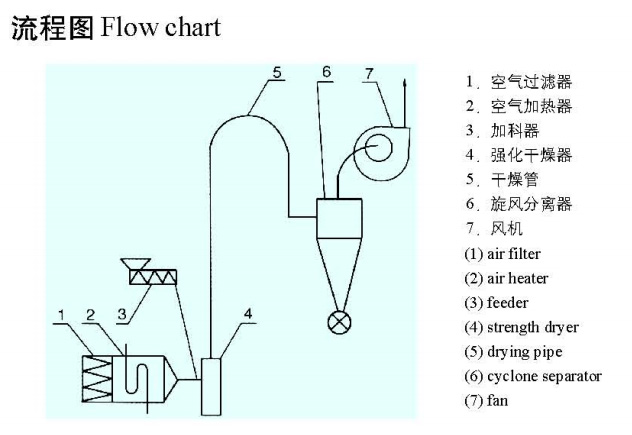

 ◆气流干燥能从易于脱水的颗粒，粉末状物科.迅速除去水份(主要是表面水 份)。在气流干燥中，由于物科在干燥器内停留时间短，使干燥成品的品质 得到最佳的控制，我厂强化型气流干燥是在基本型上增加一套转速可以无级 调节的强化器组成，湿物料通过螺旋加科器进入强化器后和热气流充分混 合，在飞速旋转的击刀击碎和推进下。物料被破碎成细颗粒，在干燥同时向 出口移动，最后在风力吸引下进入干燥管，进一步均匀干燥，风力无法吸引 的湿重颗粒继续被击碎、干燥、直至能被风吸起进入干燥管。

Air stream dryer can remove moisture from the surface of raw materials of granules or  powder that are easy to dehydate.Under the air stream drying; process the quality of finished  products can be controlled to the best because of raw material stays a short time.The dryer  of our factory is developed on the basis of basic spec to add a reinforced device of steeples speed exchange.When the humidity raw material is fed through screw,it is mixed with air  fully and is broken and pushed by rotating knives,the surface of raw  material is broken to fine granule. It moves to the outlet at the same time of drying.Finally it enters into drying pipe under the absorbing of air force,it is dried further there.The humid and heavy granule that  is not absorbed by air is broken and dried continuously till entering the dying pipe.

技术参数Technical parameters (以玉米淀粉为准calculated based on maize)

注：1、有*号者为二级干燥   2、装机功率、占地面积以蒸汽加热方式计算。

Note:1.Marked  with“*”has  two  grades   for  drying.      2.Its power and area to be occupied are calculate based on steam heating.
