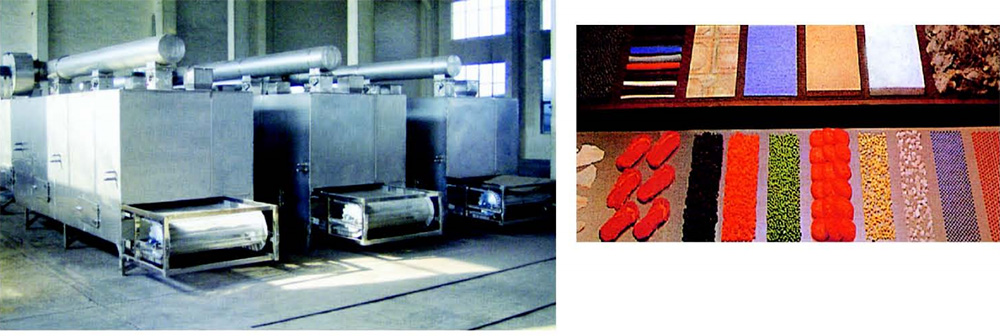

DW 系列带式干燥机

概述General Descriptio
▲将所要处理的物料通过适当的铺料机构，如星型布料器、摆动带、粉碎机或造粒机，分布在输送带上，输送带通过一个或几个加热单元 组成的通道，每个加热单元均配有空气加热和循环系统，每一个通道有一个或几个排湿系统，在输送带通过时，热空气从上往下或从下往上 通过输送带上的物料，从而使物料能均匀干燥
▲The raw matenial can be spread on the conveyer bel through sitable auxiliary mechanism such as dstibutor vibrating belt,pulverizer or gramlator
The conveyor pases one channel or several chamels consisting of heating urit.Each heating uritis equipped with air heating and circle system.Each dampex
channel has one or several damp exhaust system. When the conveyor passes it, hot air passes through raw material from n up to low or from low to up. In
this way it makes raw material dry uniformly.

用 途Applications
▲带式干燥机是常用的连续式干燥设备，可广泛应用在化工、食品、医药、建材、电子等行业，特别适合于透气较好的片状、条状、颗粒 状物料的干燥，对滤饼类的膏状物料，也可通过造粒机或挤条机制成型后进行干燥
▲ The belt drier is a usual continuous dry one. It can be wide used for chemical industry, foodstuff industry, pharma aceutical in dustry, construction material industry, electronics industry and so on. Particullarly it is suitable to dry the raw materials of sheet, strip or granule that are good in air permeability. For the paste substance of filter cakes, it is better to dry them first to make them become granule or strip through granulator.

特 点Features
▲可以调节空气量、加热温度、物料停留时间及加料速度以取得最佳的干燥效果。
▲设备配制灵活，可使用网带冲洗系统及物料冷却系统。
▲大部分空气循环利用，高度节省能源。
▲独特的分风装置，使热风分布更均匀，确保产品品质的一致性。
▲热源可采用蒸气、导热油、电或燃煤(油)热风炉配套
▲ The amount of air,temperature of heat,stay time of raw material can be adjusted in order to get the best dry effect.
▲ The configuration of equipment is flexble It can use the washing system of screen belt and the cooling system of raw materials.
▲ Most parts of air can be used through circle.The energy saves greatly.
Being adapted unique air dividing apparatus it makes  the hot air distribute unifom better and guarantee the quality of products is constant.
▲ The heat source may be steam,heat conduction oil,electricity or coal(oil)hot aifurnace 典型产品 Typical Products

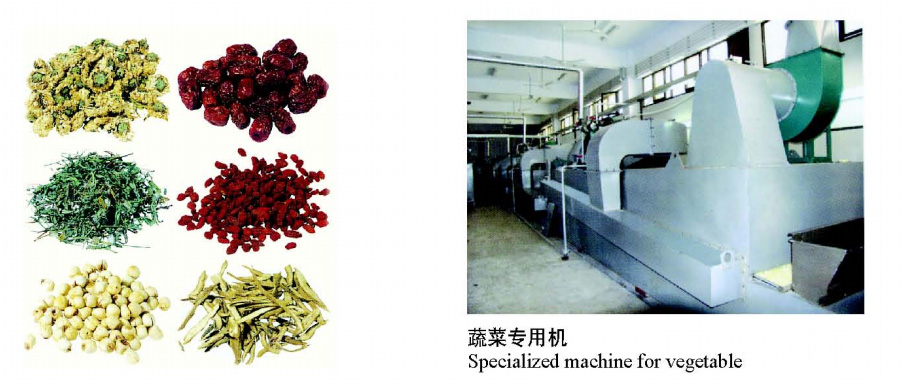

▲脱水蔬菜、颗粒饲料、味精、鸡精、椰蓉、有机颜料、合成橡胶、丙烯纤维、药品、药材、小木制品、塑料制品、电子元器件老化、固 化碳酸钙、白炭墨染料等。
▲Dehydated vegetable,granule feedstuf,monosodium glutamate,chicken abstact,shredded coconut stuffing,organic pigment,synthetic ruber,PP fiber,medicines,medicinal materials,small wood products,plastic products,aging and solidifying of electronics elements,calcium carbonate,white carbon black dyestuff and soon.

技术参数Technical Parameters

说明：以上参数仅供参考，干燥强度与物料特性，使用温度等因素有关。

Explanatio:the parametrs above mentioned isforeference only.The dyjing strength is related to the chara cterisics of raw material and the tenperature of operation
